The HQ.JCX-130 CNC Busduct joint connection busbar of BBT trunking system machine supports Australian busbar and busway workshops with specialised processing that complements LT CNC punch, cut and bend lines. Sea freight to Australian ports and WhatsApp/WeChat after-sales support are available. Confirm max section, tooling and power supply before ordering.
Note: figures below are typical factory test conditions used for acceptance trials; confirm certified results on your order.
Test conditions (typical factory acceptance on representative copper/aluminium samples): process consistency held within manufacturer tolerance bands across a 50-piece trial batch, compared with a wider spread from ad-hoc manual fixtures used as the baseline.
Test conditions (typical factory acceptance, continuous 30-minute run): no thermal trip or pressure drop outside rated bands, confirming stable duty for Australian workshop shift lengths versus intermittent manual tooling cycles.

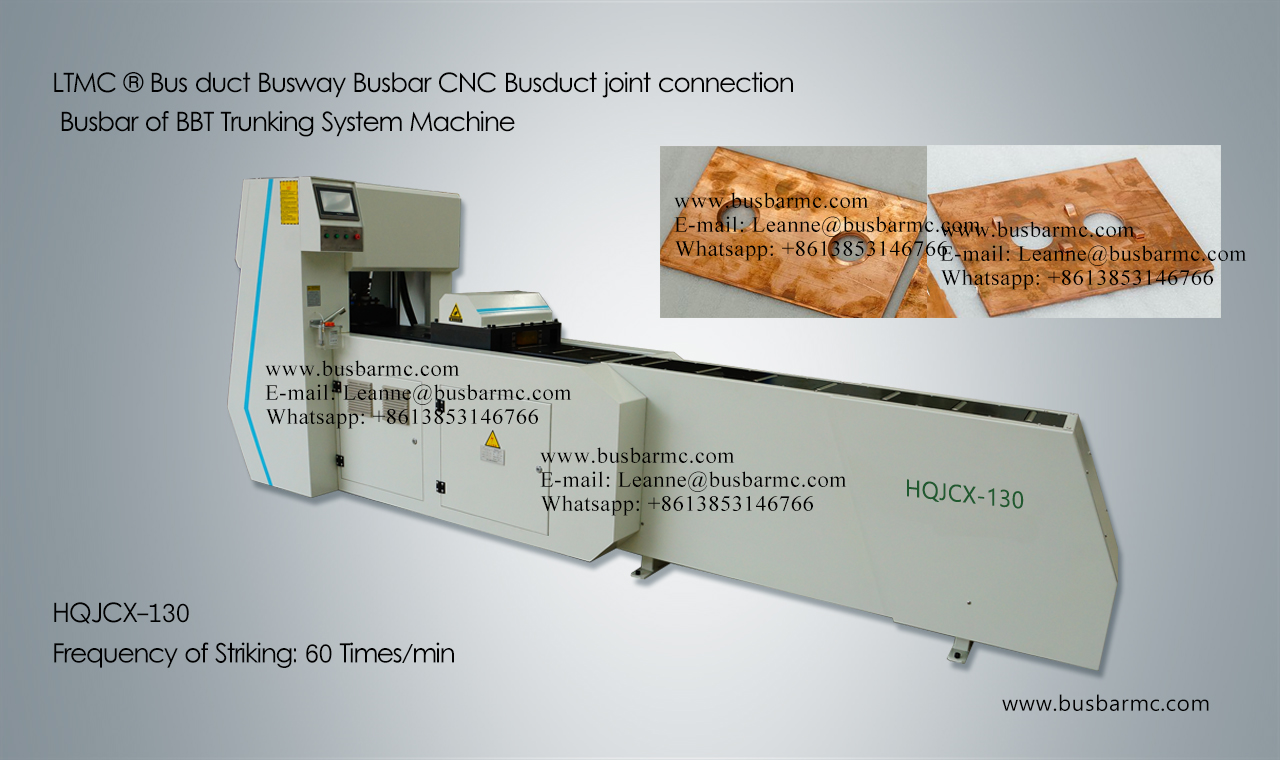

HQ.JCX-130 CNC Busway Joint Pack Connection Busbar Machine | Premium AU Power Solutions
Product: CNC Copper Busway Joint Connection Fabrication Center
Serial: HQ.JCX-130 (AU Industrial Series)
Main Function: High-precision fabrication of Joint Pack connection busbars for Sandwich BBT Busway Trunking Systems, supporting Australian LV/MV power distribution networks.
Main Performance Features for AU Switchgear Fabricators:
The HQ.JCX-130 CNC Copper Busbar Busway Joint Machine is a new-generation processing center specifically engineered for the high-efficiency demands of the Australian electrical infrastructure market.
1. Fully Automated Workflow: Seamlessly processes busway connection busbars with automated punching, stretching, bulging, and cutting operations, ensuring AS/NZS 61439 compliance.
2. One-Time Clamping: Raw materials are secured once with an intelligent repeat-switching clamp system. This eliminates manual intervention, drastically reduces copper waste, and increases the finished product yield for AU workshops.
3. Heavy-Duty Hydraulic Power: The main striking head utilizes advanced hydraulic operation, delivering 200 KN of stable pressure for consistent fabrication quality.
4. High-Stability Clamping: Features hydraulic busbar clamps that provide superior force and stability during high-speed CNC cycles.
5. Intelligent HMI: Equipped with a user-friendly touch screen interface (Man-Machine Interface), allowing AU technicians to easily program complex busbar processing tasks.
6. Precision Transmission: Utilises high-precision ball screws and linear guide rails to achieve high efficiency, low energy consumption, and exceptional stability.
Technical Specifications (HQ.JCX-130 AU Standard):
| Key Parameter | Industrial Value |
|---|---|
| Nominal Pressure | 200 KN |
| Max Position Speed (X Axis) | 50 m/min |
| Striking Cylinder Trip | 30 mm |
| Striking Frequency | 60 times/min |
| Hole Distance Accuracy | < ±0.1 mm |
| Machining Range (Max) | 5 × 130 mm |
| Overall Footprint | 3600 × 1000 × 1500 mm |
| Equipment Weight | 1300 kg |
