The CNC Busbar Processing Machine 3 in 1 busbar machine combines punching, shearing and bending for Australian switchgear and distribution workshops that want one footprint instead of three separate stations. Sea freight to Australian ports and WhatsApp/WeChat after-sales support are available. Confirm max section, tooling and power supply before ordering.
Note: figures below are typical factory test conditions used for acceptance trials; confirm certified results on your order.
Test conditions (typical factory acceptance, copper busbar 10×100 mm): punching concentricity within ±0.15 mm and burr height under 0.2 mm after shear, compared with a ±0.4 mm / 0.5 mm burr baseline from a conventional non-CNC station.
Test conditions (typical factory acceptance, mixed copper/aluminium programme): average changeover between punch, shear and bend under 90 seconds with preset tooling, versus 4–6 minutes on separately staged manual stations used as the comparison baseline.
Product Description

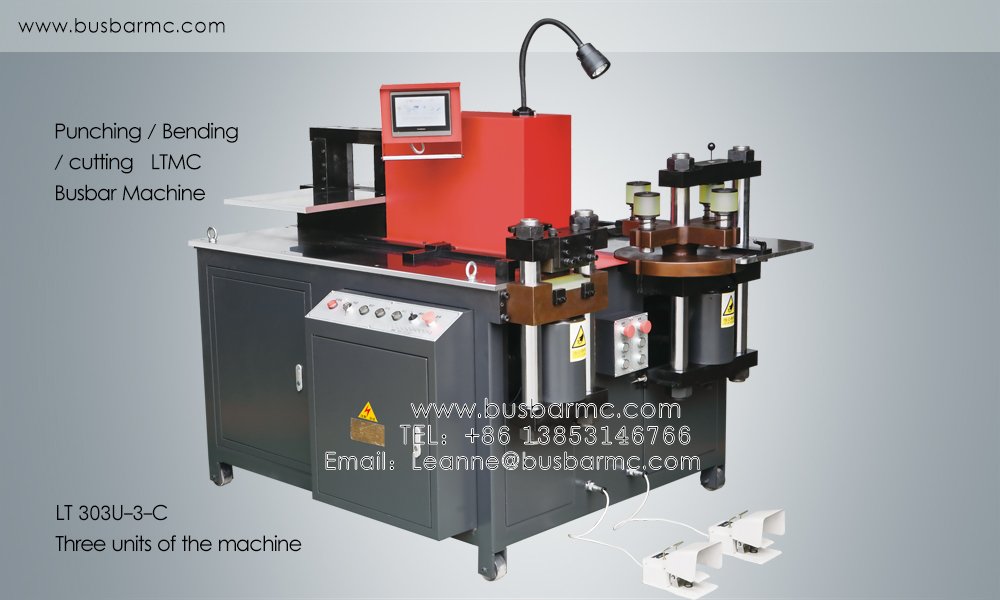

As a professional busbar machinery supplier for the Australian market, we present this advanced Turret Dual-Table CNC Busbar Processing Machine. It integrates three independent units: punching, shearing, and bending. The design allows for easy adjustment of each unit to significantly shorten processing time and improve production efficiency for switchboard manufacturers.
It is specifically engineered to process copper and aluminium busbars in various specifications. By utilising the relative operation units, operators can easily and quickly perform all kinds of fabrication tasks, such as shearing, punching (circular and oblong holes), flat/horizontal bending, vertical bending, and knurling. With interchangeable moulds, it can also handle special processing like flat pressing, embossing, cable connector forming, twisting, and pushing.
Main Characteristics for Australian Workshops
1. The Shearing Unit utilises a sharp shearing mechanism. The incision interface is flat, with no droop, no burrs, and no waste—ensuring a clean finish essential for electrical compliance.
2. The Punching Unit features a united eight-mode turret turnplate. This robust design lengthens the working life of the dies and eliminates the need to change moulds frequently, highly reducing labour intensity. It is far more efficient than traditional single-punch units often found in older workshops.
3. The Bending Station utilises a double-decker (dual-table) worktable. This is a key feature that ensures the three working stations can be operated simultaneously without any interference between long busbars. The bending station adopts an open structure, making it very convenient to position and remove processed copper bars.
4. The 3 in 1 busbar machine is equipped with four heavy-duty castors, making it easy to move around your workshop floor. It offers two operating modes: manual button and footswitch, which are user-friendly for operators. Based on your specific requirements, it can perform all kinds of special shape processing with different moulds or equipping parts. For those seeking even higher automation, consider our fully automatic CNC processing centres.

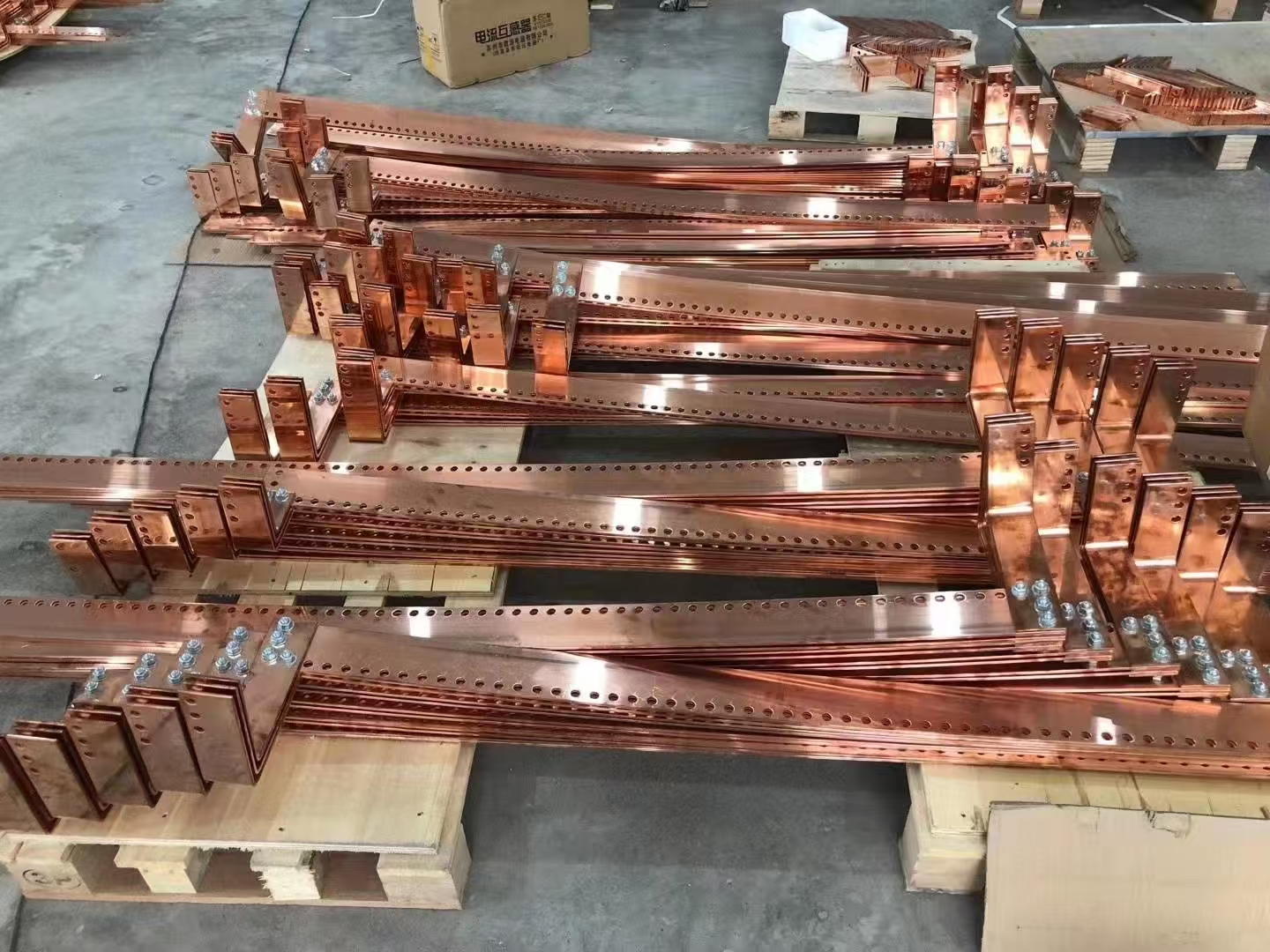

Processing Samples Display
Machine Moulds & Dies
We supply a comprehensive range of versatile 3-in-1 busbar workstations tooling.
We have hole punching moulds, shearing blades, bending dies, and fully customized moulds for unique electrical applications.
LTMC Certifications
Busbar Machine Packaging and Shipping
